From experiences so far, to explain a plan or workflow, we often have used white board to draw a diagram.
TestBench CS allows you to easily draw your diagrams in Epics, User Story and Test cases.
If you are wondering how is this going to work in a test management tool, we’ll take you to a short journey of examples.

Everything you need to know about using diagrams in TestBench CS you will find it in Online Help. Available types include flow chart, sequence diagram, class diagram, state diagram, ER diagram, User journey, Gantt diagram and PIE charts.

Besides the written information, we prepared a short video for a quick introduce on how to embed a sequence diagram in a User Story. Absolute beginners are advised to view the Mermaid-Js source. Otherwise, if you are familiar with markdowns, crafting diagrams won’t be a problem.



  • How does it work

Crafting a diagram in an Epic, User Story or Test Case requires three steps; first always add quotation marks and the type of the diagram:



```mermaid
Sequencediagram

Then add the code and close the syntax with the same punctuation signs ```.



Here is an example:

``` mermaid

stateDiagram-v2 [*] --> Login

Login --> Work:

passed Work-->

Login: logout

Login --> [*]: cancel

```

To inspire you, the following figures illustrate some of our team works and screenshots from TestBench CS environment. Each figure below has the needed code for implementation.

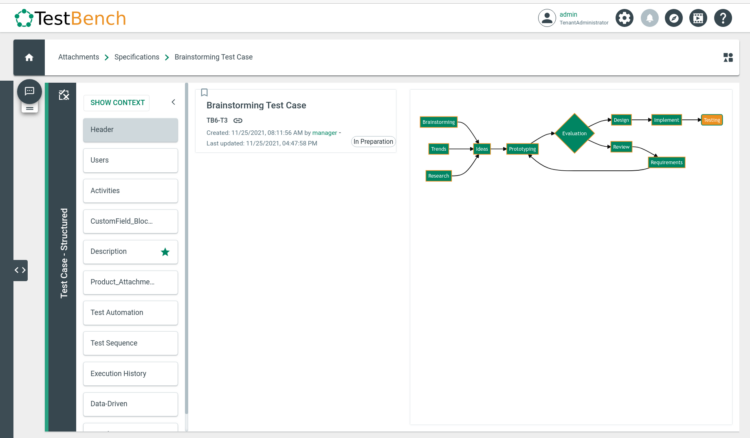

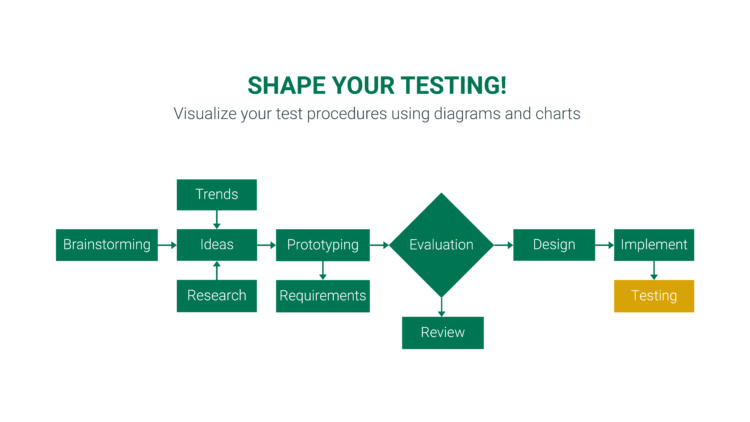

# Flowchart
Proposed usage: visualize control flow in a function or procedure.

Representation of a step-by-step approach to solve a task.
``` mermaid
%%{init: {'theme': 'base', 'themeVariables': { 'primaryTextColor': '#ffffff'}}}%%
flowchart LR

classDef default fill:#008562,stroke:#ec901f,stroke-width:2px;
classDef final fill:#ec901f,stroke:#008562,stroke-width:2px;

Brainstorming --> Ideas
Trends --> Ideas
Research --> Ideas
Ideas --> Prototyping
Prototyping --> Eval{Evaluation}
Eval --> Design
Eval --> Review
Review --> Requirements
Requirements --> Prototyping
Design --> Implement
Implement --> Testing(Testing):::final
```

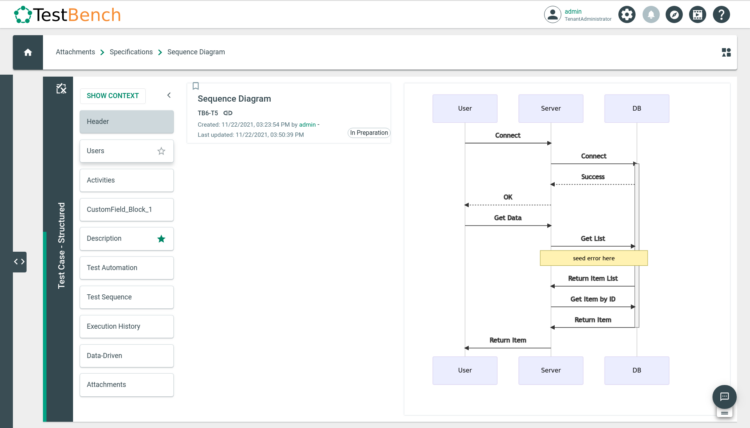

# Sequence Diagram
Proposed usage: show communication between actors e.g. for integration testing

Proposed usage: show communication between actors e.g. for integration testing
Proposed usage: show communication between actors e.g. for integration testing
``` mermaid
sequenceDiagram
User ->> Server: Connect
Server ->> DB: Connect
activate DB
DB -->> Server: Success
Server -->> User: OK
User ->> Server: Get Data
Server ->> DB: Get List
Note over Server, DB: seed error here
DB ->> Server: Return Item List
Server ->> DB: Get Item by ID
DB ->> Server: Return Item
deactivate DB
Server ->> User: Return Item
```

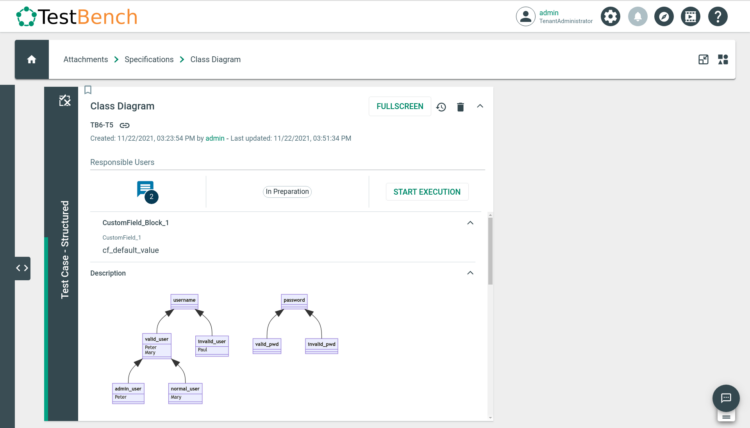

# Class Diagram
Class diagrams are meant to describe classes and their relationships.
In testing, they can also be used to visualize equivalence partitions and their representatives, including boundary values, if you like.

Use class members to indicate which values can be used to represent an equivalence partition
Use class members to indicate which values can be used to represent an equivalence partition
```mermaid
classDiagram

class username
class valid_user
valid_user: Peter
valid_user: Mary

class invalid_user
invalid_user: Paul
class admin_user
admin_user: Peter
class normal_user
normal_user: Mary
username <|-- valid_user
username <|-- invalid_user
valid_user <|-- admin_user
valid_user <|-- normal_user

class password
class valid_pwd
class invalid_pwd
password <|-- valid_pwd
password <|-- invalid_pwd

```

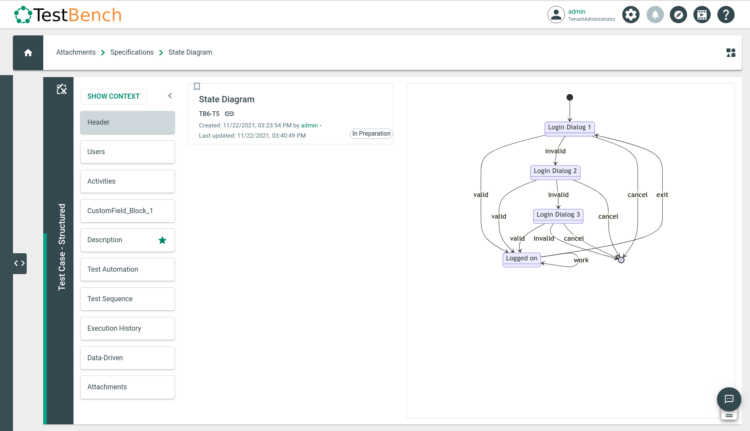

# State Diagram
State diagrams are traditionally used for state based testing

```mermaid
stateDiagram-v2
a1: Login Dialog 1
a2: Login Dialog 2
a3: Login Dialog 3
b: Logged on
[*] --> a1
a1 --> b: valid

a2 --> b: valid
a3 --> b: valid
a1 --> a2: invalid
a2 --> a3: invalid
a3 --> [*]: invalid
b --> b: work

a1 --> [*]: cancel
a2 --> [*]: cancel
a3 --> [*]: cancel
b --> a1: exit

```



Have fun playing around with the markdowns and diagrams in TestBench CS.

Don’t forget to share this with your team!
